Spout Mounted Faucet Sensor SLC-00001
Model No.: SLC-00001
Power Supply: DC 4.3～6.4V
Static Power: ≤30uA
Working Mode: Automatic on/off
Default Sensor Distance: 10cm
Adjustable Sensor Range: 9cm-13cm
Max Output Current: 800mA
Output Pulse Width: 35ms
Low Voltage Indicator: Yes
Application: Automatic faucets with sensor on spout
Certificate: CE, RoHS

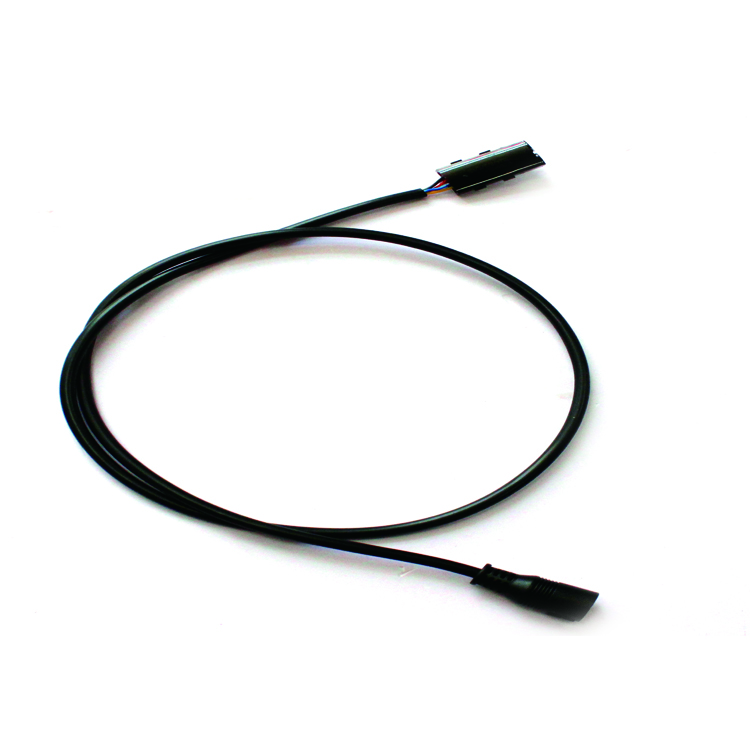

Spout Mounted Faucet Sensor SLC-00001 with 5-Pin Cable
$6.00
Description
The spout mounted sensor faucet uses active infrared sensor technology that allows starting the flow of water without touching the faucet. The sensor is spout mounted and just put your hand in front of the spout to start the water, remove the hand and water stops. It is easy to install with a single hole deck mounted on the basin. It’s a commercial touchless faucet that can be widely used in public restrooms or home bathrooms.
Spout mounted sensor faucet is also called spout mounted touchless faucet, spout mounted automatic faucet. The sensor is specially designed concealed in the spout. It is a good habit because when washing hands, people are always aware of putting their hands under the spout, this makes it easy for people using.
As the most important part, the work of the sensor is to forward the signals to the valve to turn on the faucet after detecting your hand. Its job is to inform the valve when to start or stop the flow based on the presence or absence of your hands. In most cases, infrared light sensors are often placed on the faucet body while this sensor eye SLC-00001 is put at the tip of the faucet spout, which is widely used for automatic basin faucets, especially for types that the sensor is installed on the faucet spout/aerator (sensor at faucet tip).
Function: Automatic on/off. This is the regular function for touchfree basin water faucets. You put your hands on the sensor range, water automatically flows. You remove your hands out of the sensor range, water automatically stops. The water will automatically stop flowing if continuously flowing for 60 seconds (We call this function security stop timing and this timing can be customized).
Rajeyn Sensor Features and Applications
- Used for commercial and household touchless faucets/water dispensers etc.
- Adjustable sensor range and flushing time by a remote controller.
- Auto-save parameters if power failure.
- Low power consumption. 4AA alkaline batteries lasts about 2 years.
- Glue potting with strong moisture-proof function.
- High anti-interference and anti-vibration performance.
- We have more than 50 different sensor eyes and electrical wires for your selection.
- The automatic valve closing function of AC power-off can be widely used in intelligent bathroom products.
There are over 50 different sensor housings to suit different design PCBAs. They are variety of designs for all-in-one type and separated PCBA. Shapes including round, rectangle, semicircular etc. The sensor functions and wire connections can be tailor-made based on cc
Besides sensor cases, we have variety of waterproof wire connections. The most popular types are 4-pin waterproof wire connecting with control box for sensor taps and 2-pin as well as DC type waterproof wires for sensor urinal and sensor toilets. Below are some potting sensors with different sensor cases, PCBA and wires. We are capable of providing tailor-made infrared sensors for your automatic systems.
