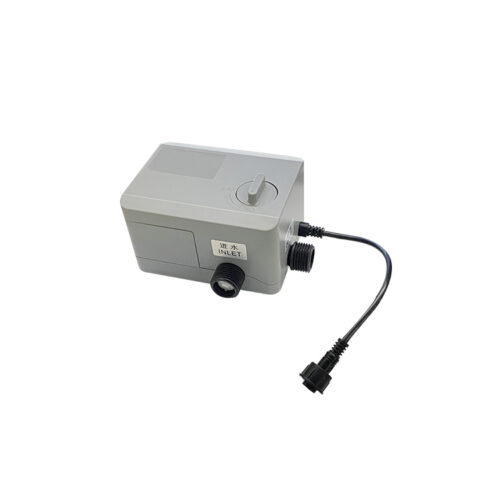

Built-in Solenoid Valve Sensor Faucet Control Module RJY-K11

$5.00

Built-in Solenoid Valve Sensor Faucet Control Module

Model No.: RJY-K11
Working Power: DC6V
Water Pressure:0.05~0.8MPa
Media Temperature:1~60℃
Inlet/Outlet:G1/2 (DN25)
Application: Sensor mixer for cold and hot water
Sensor Housing: Optional based on your faucet design

Description

● For automatic basin faucets (mixer for cold and hot water)
● BASF environmental friendly material
● Built-in one-piece valve body assembly
● Super energy saving solenoid valve drive technology, 4 pieces AA alkaline batteries will last 24 months with 3000 circles per month.
● Touch sensor work reliably even if there is water on the glass surface.
● Touch sensor: Hands touch the icon on the glass surface, water flows; hands touch it again, water stops. The water will automatically stop after 180 seconds of continuously flowing.
● Auto sensor in spout: Hand in the sensor range, water flow; hand out of sensor range, water stops. The water will automatically stop after 60 seconds of continuously flowing.
● The water temperature is displayed on the glass panel when the water comes out.
● Components: glass panel, touch sensor , automatic sensor, integrated solenoid valve, battery box and holder, using ceramic cartridge

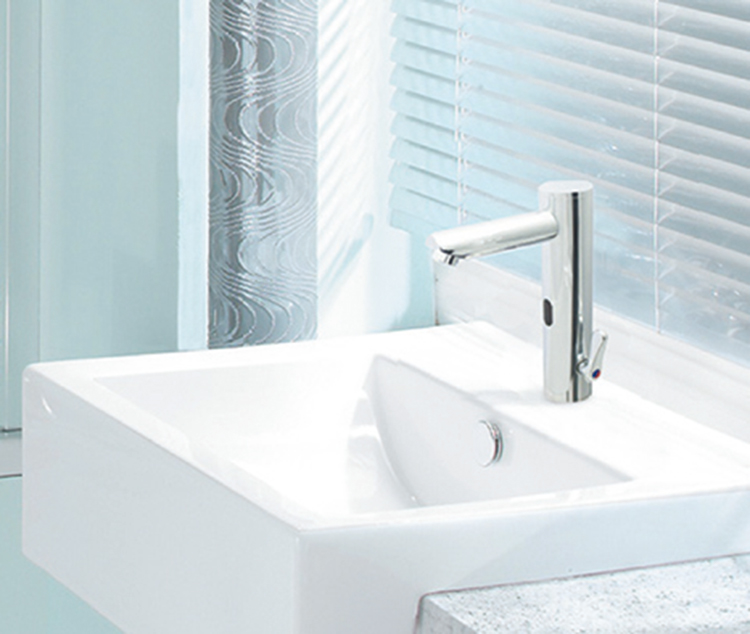

RJY-K11 control module is used for automatic basin mixer such as RJY-11-B201D. The full set components include tempered glass panel, touch sensor , automatic sensor, integrated solenoid valve, battery box and holder (using ceramic cartridge). On the other hand,
