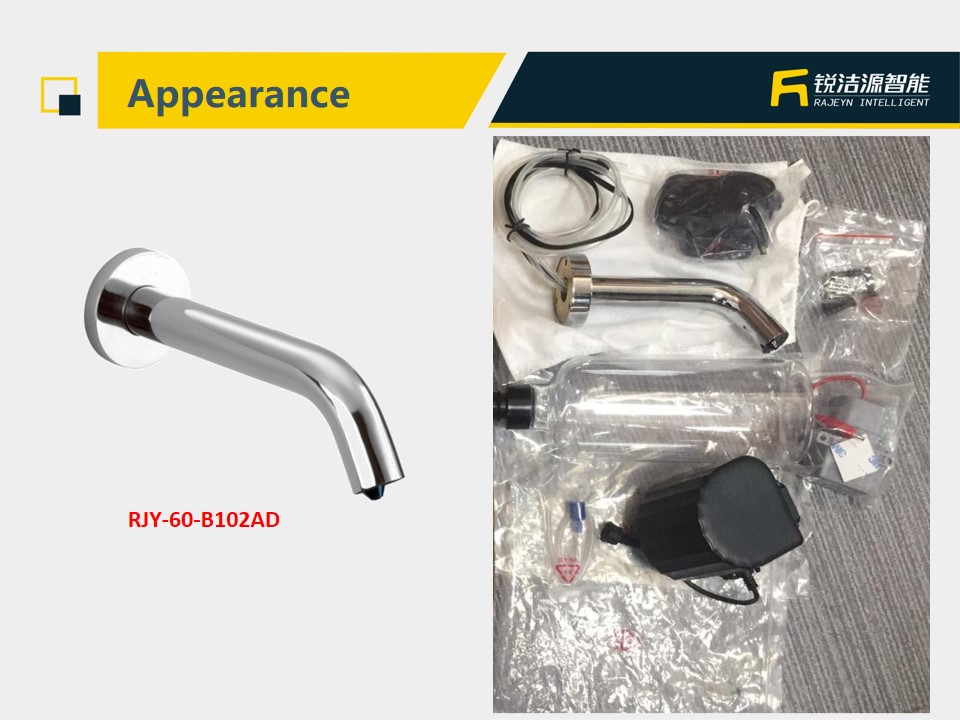

RJY-60-B102AD

An automatic soap dispenser (also known as a touch-free soap dispenser, sensor soap dispenser) is a device fitted in bathrooms that are filled with a soap solution. The sensor operation of these dispensers means that users do not touch the dispenser, reducing the spread of germs and making them one of the most hygienic options available. An automatic touchless soap dispenser is an amazing solution that comes with several benefits for public and private bathrooms.

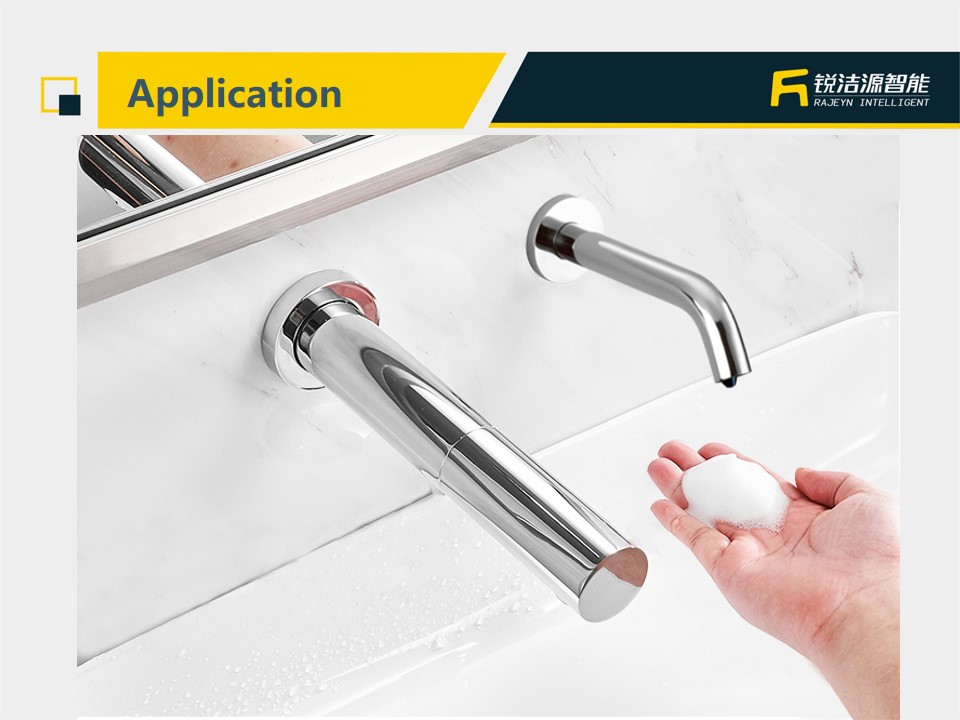

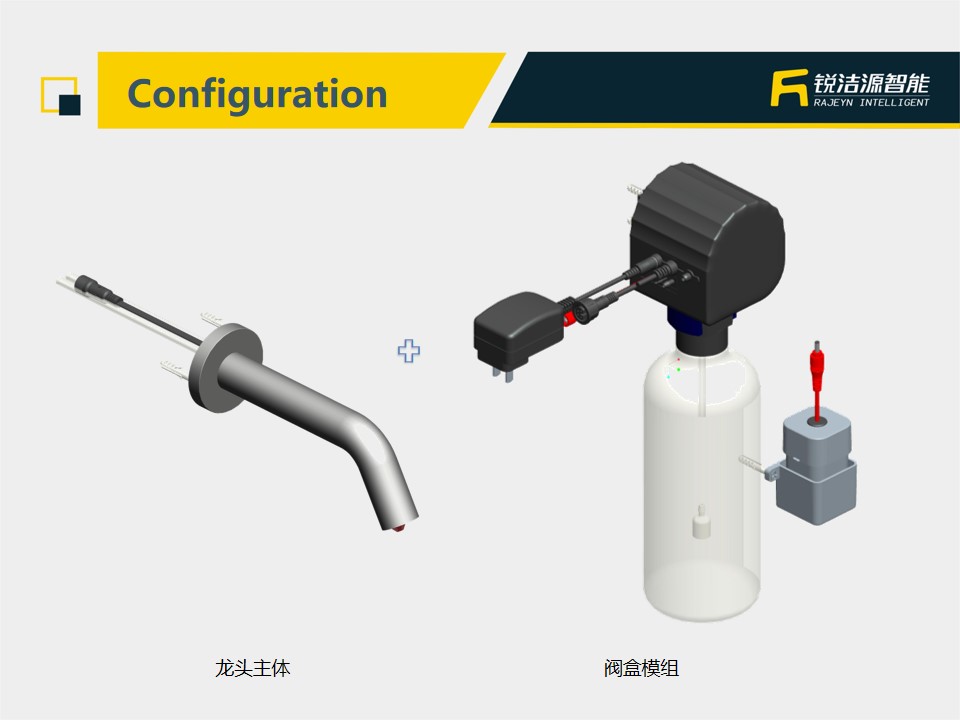

Rajeyn automatic sensor soap dispenser is Brass Soap Spout construction and it’s installed in the sink vicinity near the faucet. It is available in battery power or optional AC power. Soap is refillable from below the counter. Automatic sensor soap dispenser function: Automatic on/off, Soap dispenser automatically supplies foam soap as one puts hands under the spout. The soap dispenser automatically stops supplying soap after 1.5s. The faucet sensor soap dispenser includes THREE main parts: faucet body with sensor, pump unit and power supply.

Hands-free automatic sensor soap dispensers have many advantages over manual soap dispensers. The main good features are as follow.

* Touch-free operation. Touchless reduces the spreading of germs and bacteria. Automatic soap dispensers offer a solution that prevents hands from directly touching surfaces. They significantly reduce the risk of spreading viruses and bacteria and prevent cross-contamination. As such, they provide employees, customers, and visitors with a higher level of infection protection and hygiene than conventional soap dispensers.

* Low battery reminder. Soap dispenser sensor flash to indicate that it is time to replace existing batteries with new ones if there is not enough power going to the unit. No soap dispensed at this time if hands in the sensor range.

* Preset dispense in a specific amount of soap and soap volume is adjustable by a remote controller. Touchless soap dispensers will only dispense a set amount of soap per motion-sensing activation. A predetermined amount to be dispensed can be set to a highly efficient quantity in which waste will be minimal. At the same time, the soap volume is adjustable by a remote controller to meet different scenarios and applications.

* Easy to install and use. When the sensor of the dispenser senses hands in the sensing range (generally within 8cm to 12cm), it automatically dispenses a specific amount of foam soap and then stops automatically. This eradicates the need for human contact with the appliance for it to function. The goal is to ensure hygienic usage, which is why it is widely used in places with high public human traffic. This reduces the rate of transmission of diseases and germs from one person to another.

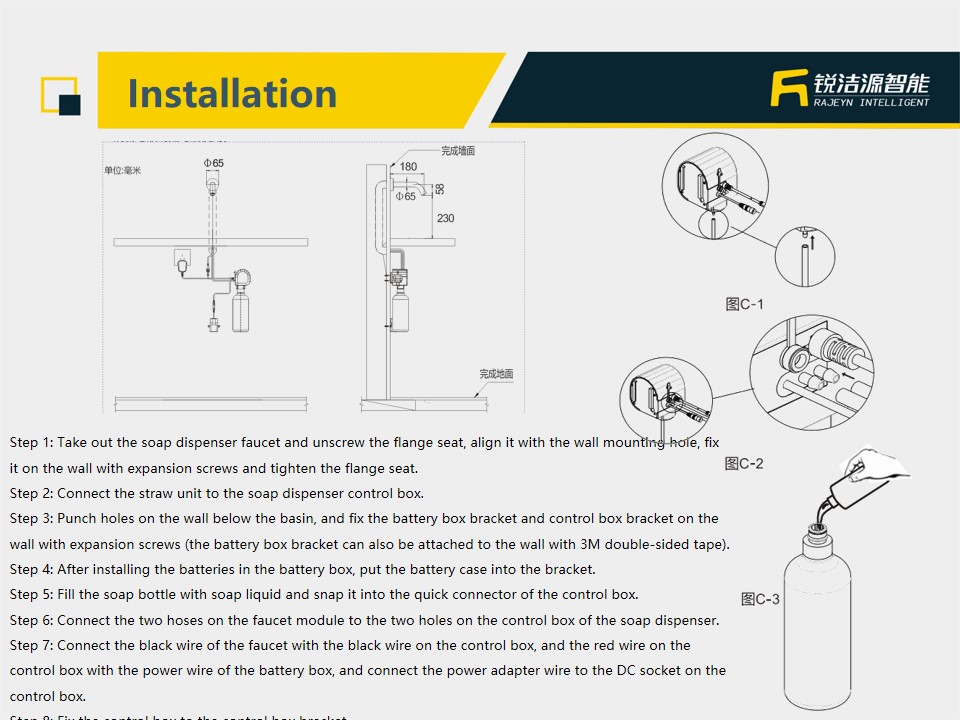

Step 1: Install soap dispenser faucet. Fix the soap dispenser faucet onto the wall with the fixing nut and gaskets.

Step 2: Install soap hose to dispenser control box. Fix the soap hose to push-fit connector on soap dispenser control box.

Step 3: Install holders. Drill holes on the wall according to the holder fixing holes’ size. Put expansion screws into the hole and fix the holder that holds the both the soap dispenser control box and battery case. 3M double-side tape is available to post the battery case holder on the wall.

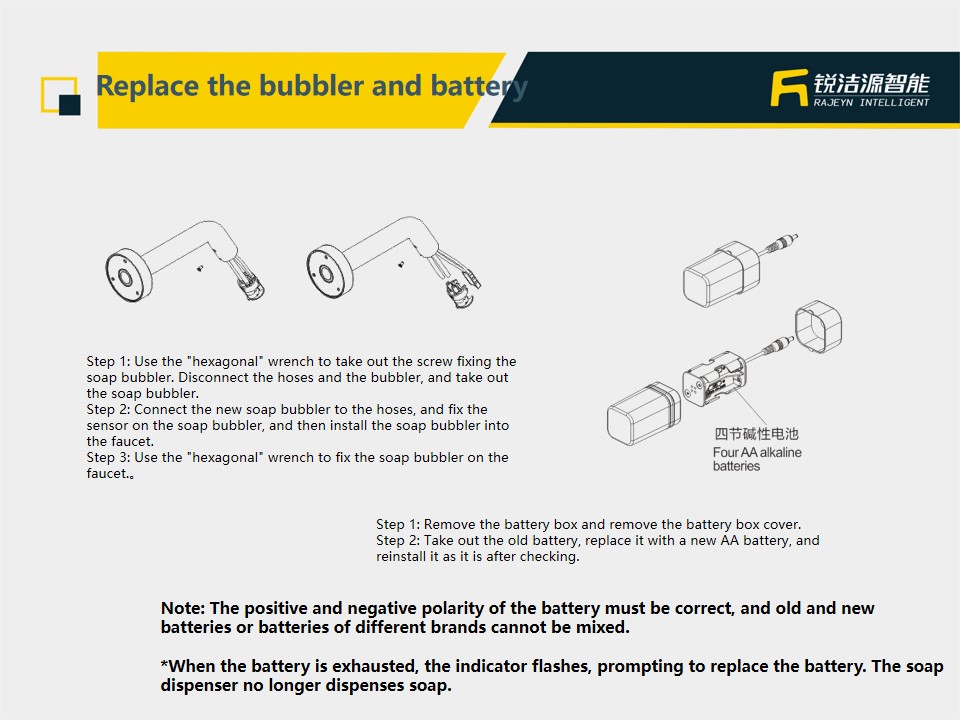

Step 4: Install batteries. Insert four AA alkaline batteries into the battery case. You will notice that batteries are EXCLUDED in the package.

Step 5: Pour soap. Pour foam soap or mixed liquid soap into the soap bottle. Then fixed the soap bottle to push-fit connector on soap dispenser control box.

Step 6: Connect soap hoses. Connect soap hose to soap outlet and air outlet on the soap dispenser control box.

Step 7: Wire connection. Connect battery case cable to the soap dispenser power cable (red color). Connect pump cable to the soap dispenser cable (black color). Connect adapter wire to the DC jet on the control box.

Step 8: Fix  the soap dispenser control box. Insert the well connected soap dispenser control box to the holder .Installation finished and it is ready to use.

* Refillable 1000 ml soap bottle.

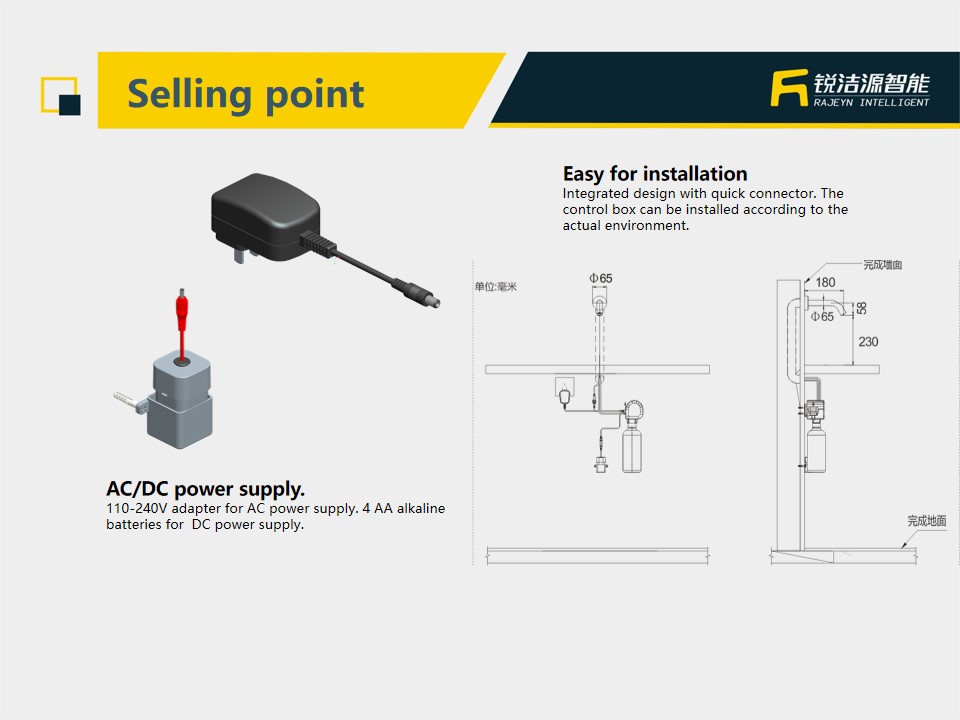

* AC/DC power supply. Powered by 4pcs AA alkaline batteries and main power. Batteries shall last approximately 1000 times/month for 5-6 months. Rajeyn’s automatic Soap Dispenser is designed to last half year of use before needing a battery replacement (4 pieces AA alkaline batteries, not included). Along with its energy efficiency, the soap dispenser’s valve seals shut to prevent leaks and has a wide mouth for refills. At the same time, the adapter/transformer is also available just in case you prefer to use main power.
