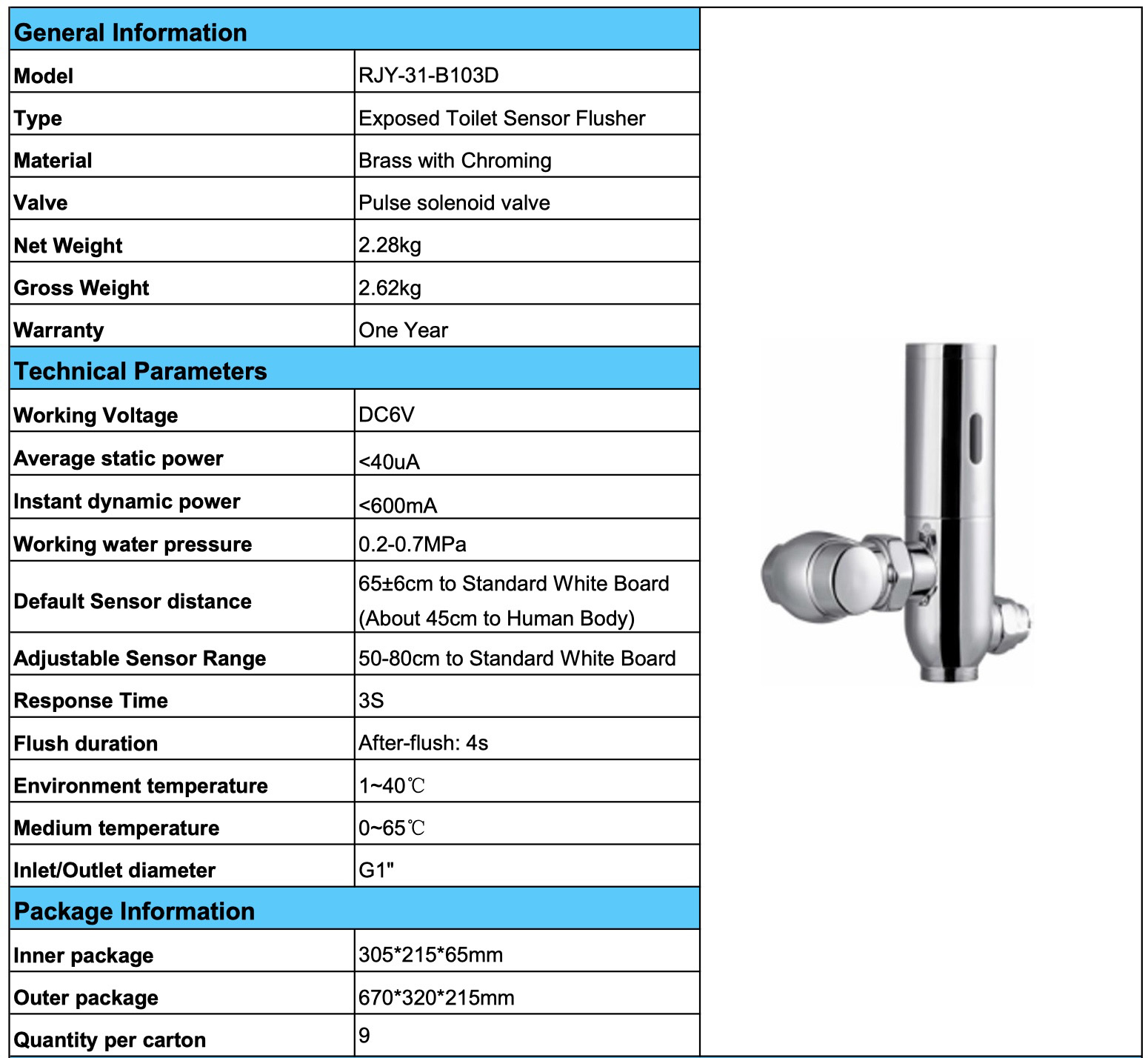

RJY-31-B103D

How the sensor toilet works? When people come to the toilet, the sensor will detect them and activate the valve to open or close according to the program. Generally speaking, there are two types of sensor toilet flush valves.

Type 1: Concealed wall-mounted automatic toilet flushometers. The concealed wall mounted automatic toilet flusher valve is mainly composed of 2 parts —- a faceplate with an infrared sensor on the wall and an embedded box with a flush valve inside the wall. One face plate can match with different control boxes. We provide various flushing systems for different applications. People can select the one which fits their requirements. High level with brass valve and stainless steel housing, or cheap flush valve with plastic valve and housing. Some items come with a manual push button which allows manually flush by press the button.

Type 2: Disclosed/Exposed automatic toilet flushers. Disclosed automatic toilet flusher with the whole flush valve disclosed outside. It is disclosed outside and can be seen obviously besides the toilet. Normally the raw material is Brass. It is easy for installation and repair. Moreover, It integrates the infrared sensor, solenoid valve and battery pack. The mechanical manual handle/button is workable in case the electronic sensor does not work. It is widely used for commercial public restrooms.

There’s a water-flow regulator in this flush valve. You use screwdriver to regulate water flow. Clockwise direction is to turn down water flow while counter-clockwise direction is to turn up water flow. Also you can clean the filter net in water inlet. Please use screwdriver to back-out the filter net. Clean the filter net with clear water and then fix it back.

Also, it’s important to replace batteries when it runs out. You will find the indicator light flashes every 3-4 seconds if battery power is low, alerting you to change batteries. Do no worry: If battery power runs out the sensor will shut off and water will not flow. Then you need to replace batteries.

* Touchless automatic sensor With microcomputer smart sensor technology, water will automatically flush when the user leaves the sensor range, which is convenient and hygiene.

* Excellent applications The toilet flush valve is exposed wall mounted, suitable for all kinds of modification projects. It’s also convenient and hygiene for works in public toilet, hotel, hospital, airport, bathroom, etc. You can rest assured that the automatic sensor toilet valve has a complete range of mounting accessories and is quite easy for installation.

* Intelligent water saving The toilet sensor can control flushing according to the frequency of use, effectively avoiding the waste of water resources. On the other hand, the machine control line is using microcomputer control. The sensor distance is adjustable by remote controller.

* Energy saving Batteries shall last approximately 3000 times/month for 1-2 years.

* Low power indication When the battery is exhausted, the indicator light flashes and the flush valve will no longer discharge water, which may indicate it is time to replace existing batteries with new ones or there is not enough power.

* Healthy and Safe With touch-free flush valves for urinals, it can prevent the spread of bacteria and germs. It’s not only time-saving but also hygienic.
