For Rajeyn automatic faucets, flush valves, soap dispenser and concealed cistern, there are remote controllers to adjust sensor distance, flush duration and working modes. There are three kinds of remote controllers.

RJY-RC2B01 Remote controller to adjust sensor distance

Regarding to this remote controller, there are 2 buttons in total, namely “+” button and “-” button. The sensing distance can be lengthen ( “+” showed on the remote controller ) or shorted ( “-” showed on the remote controller). Indicator light on the remote controller will flush if the right front distance between the controller and the faucet is 0.5-2 meters. Press “+” once, the sensing range will be lengthen 1-3cm while press “-” the sensing range will be shorten 1-3cm.

Indicator light on the sensor module will flush 5 times (flash time would differentiate based on different settings by customers) if the sensing range has been set as max/min.

RJY-RC5B01 Remote controller to adjust sensor distance and flush duration

Regarding to this remote controller, there are five buttons in total, of which have different functions.

1) Press button 1 to lengthen sensing range. It lengthens the sensing range by faucet 1-3cm/urinal 3-5cm every time.

2) Press button 2 to shorten sensing range .It shortens the sensing range by faucet 1-3cm/urinal 3-5cm every time.

3) Press button 3 to lengthen the flushing duration. It lengthens the flushing duration by 1-2 seconds every time.

4) Press button 4 to shorten the flushing duration.  It shortens the flushing duration by 1-2 seconds every time.

5) Press button 5 to change toilet flush working modes.

There are two working modes for the toilet sensor: Normal working mode is to flush 9s every usage; intelligent working mode has short drain and long drain flush, Short drain: flushing time = 4s, if a person was in the sensing zone <1min; Long drain: flushing time = 9s, if the person was in the sensing zone >1min. This function would differentiate for different customers.

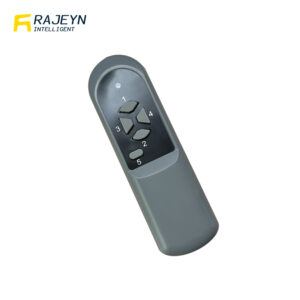

RJY-RC5B02 Remote controller to adjust working modes

This remote is used for sensors with complex functions. For example, sensors include automatic on/off and wave on/off function. Customer can use this remote to switch from automatic sensor to wave-on sensor and vice versa.
