With its versatility, improved hygiene, and water conservation, sensor faucets are quickly becoming the first choice for many consumers when renovating their homes and replacing existing fixtures.

The idea of installing a smart tap might sound challenging, but in fact—whether it’s a washbasin faucet or a kitchen faucet—that an automatic touchless faucet can be installed just as quickly as a traditional mixing faucet. Especially an all-in-one hot and cold automatic sensor faucet is very easy to install. Let’s look at the install steps.

FAUCET INSTALLATION
Step 1:
Take out the faucet loosen the nut and gaskets(one rubber +one S/S) on the faucet and then put the sensor wire and the hose through the mounted basin hole, and finally tighten the nut and the gaskets. See Figure A
Note: Please make attention to the position for hot water and cold water as below sketch.

Step 2:
AC and DC type: Drill two holes(diameter:7.5mm, depth:30mm)based on Figure B-1, knock the expansion tube into the hole, put the battery box on the holder, and knock self-tapping screws into the expansion tube(optional: also can use 3M double-sided tape to stick the holder on the wall). Connect the transition connector and the faucet power wire. then connect the adapter and the battery power to the transition connector, then connect the adapter to the main power.

DC type:Drill two holes(diameter:7.5mmdepth:30mm) based on Figure B-2. knock the expansion tube into the hole, put the battery box on the holder, and knock self-tapping screws into the expansion tube. (Optional: also can use 3M double-sided tape to stick the holder on the wall).

AC type: Use the transition connector to connect with the adapter and the faucet power wire, then connect the adapter to the main power.

Step 3:

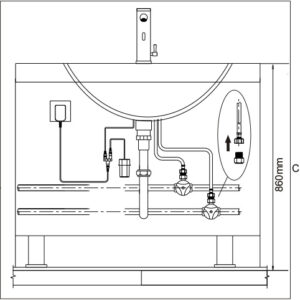

Connect the hose to the G1/2 water supply valve(hot and cold) as Figure C.

Note: After installation please make 0.9MPa/60Swater pressure test to confirm all pipelines are no leakage of water.







BATTERY REPLACEMENT

Pull out the battery upper cover, and replace it with new 4AA alkaline batteries. and fix it back.

Note:
1. Make sure the batteries are installed correctly(“+” positive and“-” negative charge). DO NOT mix new&old batteries. Do NOT mix batteries of different brands.
2. Indicator light will flash one time every 3 to 4 seconds if battery power is low, alerting to change batteries.
3. If battery power runs out the sensor will shut off and water will not flow.



PRECAUTION FOR CLEANING

TROUBLESHOOTING
